Micro Perforating and Title Creasing Machines
At Sindhu Machinery House, we have several models of Micro Perforating and Title Creasing Machines. Our range of these machines extends to both power driven and foot operated CM machine. Our machines are made with hi-tech engineering, latest technology and with best quality material that ensures efficient output without any waste of material.
Micro Perforating and Title Creasing Machines available at SMH are –

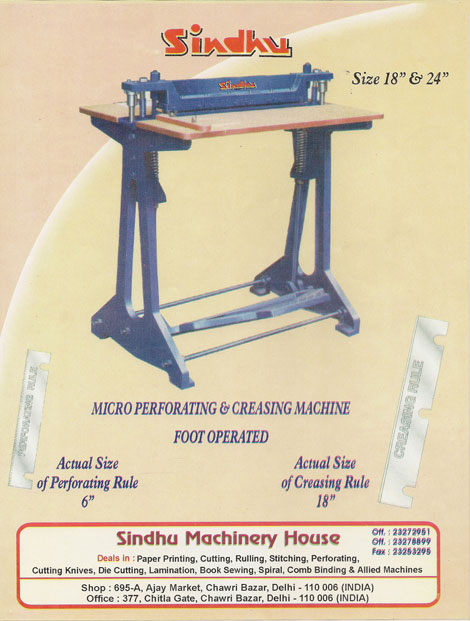

1). Sindhu Micro Perforating and Title Creasing Machine (Foot Operated) – Easy to afford and completely user friendly, this machine easily perforates paper. This Sindhu brand machine is available in sizes 18” and 24”.
Actual size of perforating rule is 6” Actual size of perforating rule is 18”
2). Sindhu Micro Perforating and Title Creasing Machine (Power Driven) - meant for creasing the cover of a paperback. The machine can also be used for perforating the paper. With unbeaten precision and quality of Sindhu, the machine will be an asset to any printing house to produce the paperback loops of unmatched standards.
Power Driven Micro Perforating and Title Creasing Machine available in three models:
i) CM-I Title Creasing Cum Micro Perforating Machine (Non Variable / Single Speed)
ii) CM-II Title Creasing Cum Micro Perforating Machine (With Variable Speed Controller)
iii)CM-III Title Creasing, Micro Perforating Cum Half Sticker Cutting Machine (With Variable Speed Controller)
Technical Data –
Maximum Title Size |
610 MM (24") |
Minimum Title Size |
100 MM (4") |
Number of Single/Double Creaser |
2 Set each |
Perforation/Slitting Assembly |
1 Set each |
Number of Half Cutting Assembly |
6 Nos. |
Power Required |
0.37 KW (½ HP) |
3). Sindhu Title Creasing Machine 20" (Power Driven) - Our brand new product made to fulfil Title Creasing jobs only. This 20" Title Creasing Machine boasts the capacity of 2000 sheets per hour and weighs just 90 Kg. It can also be used alternateively as Paper Bag Creasing Machine.

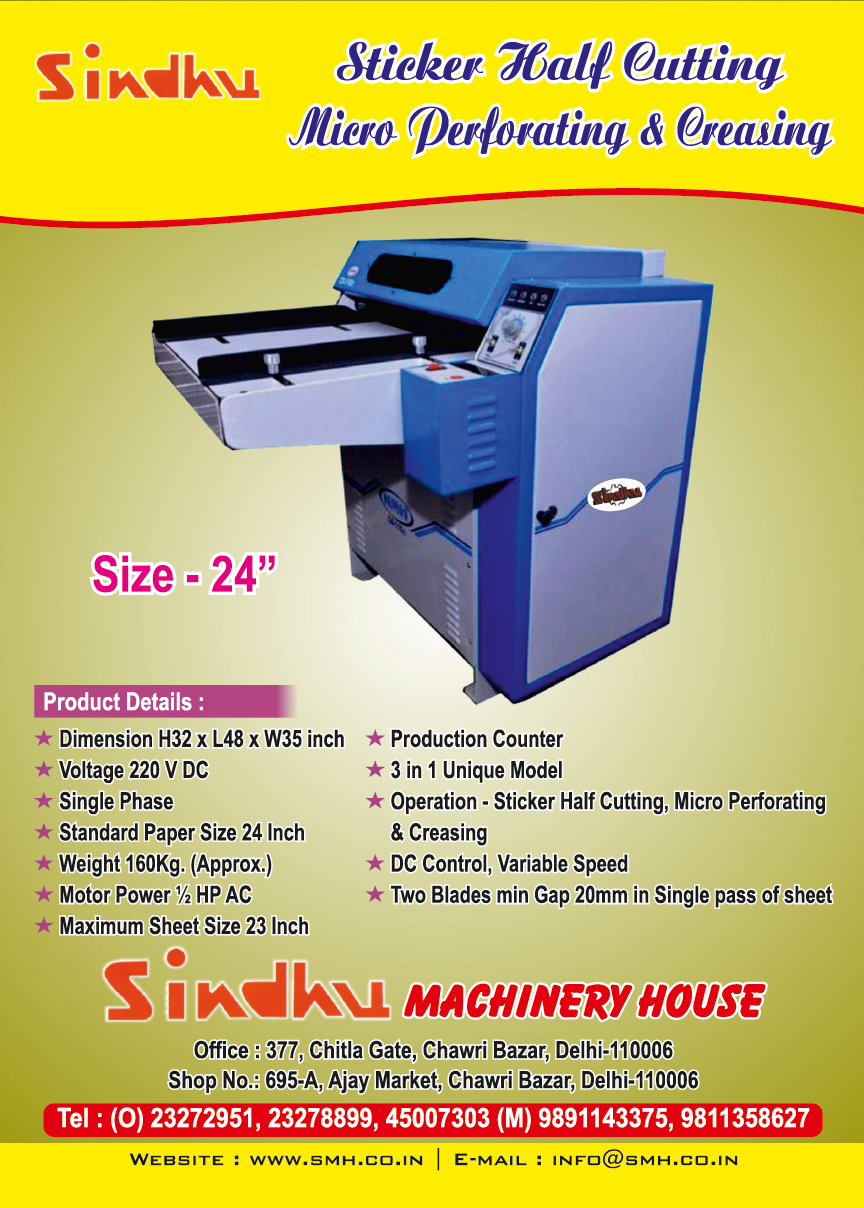

4). Sindhu Sticker Half Cutting Micro Perforating & Creasing 24" (Power Driven) - Our latest 3 in 1 unique machine that boast all round operation including Sticker Half Cutting, Micro Perforating and Creasing. It's just suitable for all kind of operations. Weighing just 160 Kg, this machine operates on a maximum sheet size of 23 inch.
